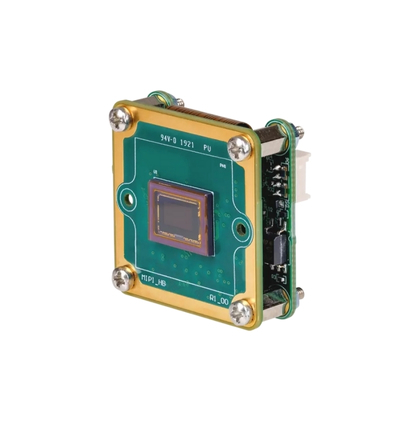

The Imaging Source DMM 36CX415-ML Camera
The DMM 36CX415-ML is a high-resolution 36C Series Monochrome FPD-Link III camera designed for industrial vision, embedded AI, and automation applications that require exceptional image detail and reliability. Featuring the 1/2.8-inch Sony CMOS STARVIS IMX415 rolling shutter sensor, it captures 3840×2160 (8.3 MP) resolution at up to 30 fps, delivering precise, low-noise monochrome images with a 12-bit dynamic range. Its FPD-Link III interface ensures high-speed, reliable data transfer, while 12-bit and 10-bit monochrome output provides excellent tonal depth and imaging precision. With an M12 lens mount option and a compact 30×30×27.5 mm form factor, the DMM 36CX415-ML is ideal for machine vision, robotics, and automated inspection systems requiring both performance and compact integration.
TECHNICAL INFORMATION:
- Dynamic Range: 12 bit
- Resolution: 3,840×2,160 (8.3 MP)
- Frame Rate: 30 fps
- Video Output Format: 12-Bit Monochrome, 10-Bit Monochrome
- Interface: FPD-Link III
- Compatibility: FPD-Link III interfaces
- Sensor Type: CMOS STARVIS
- Sensor Model: Sony IMX415
- Shutter Type: Rolling
- Optical Format: 1/2.8 inch
- Pixel Size: H: 1.45 µm, V: 1.45 µm
- Lens Mount: M12x0.5, optional
- Dimensions: 30×30×27.5 mm
Quick Info for the The Imaging Source DMM 36CX415-ML
| Camera Category: | Embedded |
|---|---|
| Camera Series: | 36C Series |
| FPS: | 30 |
| Interface: | - |
| Manufacturer: | The Imaging Source |
| Resolutions: | 8.3 MP |
| Scanning Mode: | Rolling Shutter |
