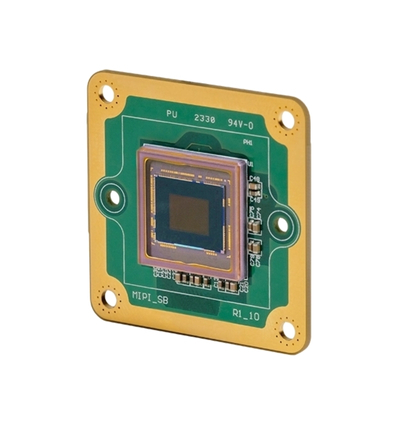

The Imaging Source DFM 36SR0234-ML Camera
The DFM 36SR0234-ML is a high-speed 36S Series Color MIPI CSI-2 camera designed for demanding embedded vision and industrial applications. Featuring the 1/2.6-inch onsemi CMOS AR0234CS global shutter sensor, it captures 1920×1200 (2.3 MP) resolution at up to 120 fps, delivering sharp, distortion-free color images even in fast-motion environments. Its 22-pin MIPI CSI-2 connector ensures seamless integration with NVIDIA Orin, NXP i.MX 8M Plus, and Raspberry Pi 5, while 10-bit Bayer (BG) output provides accurate color representation and smooth gradients. With a trigger input, M12 lens mount option, and a compact 30×30×6 mm design, the DFM 36SR0234-ML offers exceptional reliability, speed, and image fidelity—making it ideal for machine vision, robotics, and embedded AI imaging systems.
TECHNICAL INFORMATION:
- Dynamic Range: 10 bit
- Resolution: 1,920×1,200 (2.3 MP)
- Frame Rate: 120 fps
- Video Output Format: 10-Bit Bayer (BG)
- Interface: MIPI CSI-2 (22-Pin Connector)
- Compatibility: NVIDIA Orin, NXP i.MX 8M Plus, Raspberry Pi 5
- Sensor Type: CMOS
- Sensor Model: onsemi AR0234CS
- Shutter Type: Global
- Optical Format: 1/2.6 inch
- Pixel Size: H: 3 µm, V: 3 µm
- Lens Mount: M12x0.5, optional
- Trigger Input: Supported
- Dimensions: 30×30×6 mm
Quick Info for the The Imaging Source DFM 36SR0234-ML
| Camera Category: | Embedded |
|---|---|
| Camera Series: | 36S Series |
| FPS: | 120 |
| Interface: | - |
| Manufacturer: | The Imaging Source |
| Resolutions: | 2.3 MP |
| Scanning Mode: | Global Shutter |
