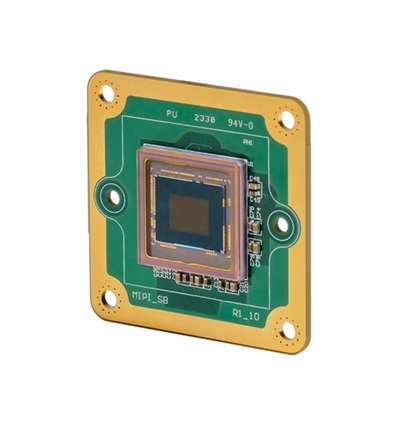

The Imaging Source DFM 36SR0521-ML Camera

The DFM 36SR0521-ML is a compact, high-performance 36S Series Color MIPI CSI-2 camera designed for embedded vision and industrial imaging applications requiring superior color fidelity and integration flexibility. Featuring the 1/2.5-inch onsemi CMOS AR0521 rolling shutter sensor, it delivers 2592×1944 (5 MP) resolution at up to 60 fps, providing detailed, high-quality images with a 12-bit dynamic range. Its 22-pin MIPI CSI-2 connector ensures seamless compatibility with NVIDIA Orin, NXP i.MX 8M Plus, and Raspberry Pi 5, while 10-bit and 12-bit Bayer (BG) output offers excellent color depth and tonal precision. With a trigger input, M12 lens mount option, and compact 30×30×6 mm form factor, the DFM 36SR0521-ML combines efficiency, versatility, and imaging performance—ideal for AI edge devices, machine vision, and automation systems.

TECHNICAL INFORMATION:

• Dynamic Range: 12 bit
• Resolution: 2,592×1,944 (5 MP)
• Frame Rate: 60 fps
• Video Output Format: 10-Bit Bayer (BG), 12-Bit Bayer (BG)
• Interface: MIPI CSI-2 (22-Pin Connector)
• Compatibility: NVIDIA Orin, NXP i.MX 8M Plus, Raspberry Pi 5
• Sensor Type: CMOS
• Sensor Model: onsemi AR0521
• Shutter Type: Rolling
• Optical Format: 1/2.5 inch
• Pixel Size: H: 2.2 µm, V: 2.2 µm
• Lens Mount: M12x0.5, optional
• Trigger Input: Supported
• Dimensions: 30×30×6 mm
