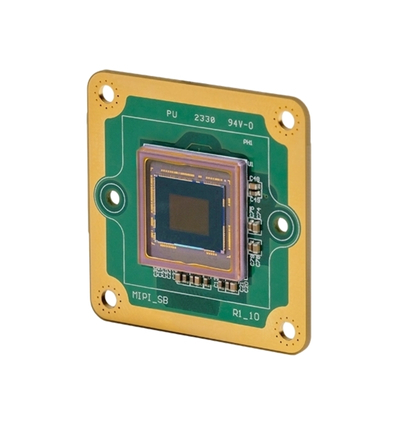

The Imaging Source DFM 36SX296-ML Camera
The DFM 36SX296-ML is a compact 36S Series Color MIPI CSI-2 camera built for precision embedded vision and industrial imaging applications. Featuring the 1/2.9-inch Sony CMOS Pregius IMX296 global shutter sensor, it captures 1440×1080 (1.6 MP) resolution at up to 60 fps, delivering crisp, motion-free color images with excellent low-noise performance. Its 22-pin MIPI CSI-2 connector ensures easy integration with NVIDIA Orin, NXP i.MX 8M Plus, and Raspberry Pi 5 platforms, while 10-bit Bayer (RG) output provides accurate color fidelity for demanding vision tasks. With a trigger input, M12 lens mount option, and a compact 30×30×6 mm footprint, the DFM 36SX296-ML combines high image quality, speed, and integration flexibility for machine vision, robotics, and embedded AI systems.
TECHNICAL INFORMATION:
- Dynamic Range: 10 bit
- Resolution: 1,440×1,080 (1.6 MP)
- Frame Rate: 60 fps
- Video Output Format: 10-Bit Bayer (RG)
- Interface: MIPI CSI-2 (22-Pin Connector)
- Compatibility: NVIDIA Orin, NXP i.MX 8M Plus, Raspberry Pi 5
- Sensor Type: CMOS Pregius
- Sensor Model: Sony IMX296
- Shutter Type: Global
- Optical Format: 1/2.9 inch
- Pixel Size: H: 3.45 µm, V: 3.45 µm
- Lens Mount: M12x0.5, optional
- Trigger Input: Supported
- Dimensions: 30×30×6 mm
Quick Info for the The Imaging Source DFM 36SX296-ML
| Camera Category: | Embedded |
|---|---|
| Camera Series: | 36S Series |
| FPS: | 60 |
| Interface: | - |
| Manufacturer: | The Imaging Source |
| Resolutions: | 1.6 MP |
| Scanning Mode: | Global Shutter |
