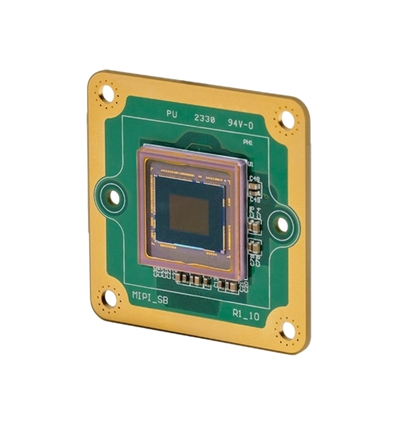

The Imaging Source DFM 36SX297-ML Camera
The DFM 36SX297-ML is a compact 36S Series Color MIPI CSI-2 camera designed for high-speed embedded vision and industrial applications. Powered by the 1/2.9-inch Sony CMOS Pregius IMX297 global shutter sensor, it captures 720×540 (0.4 MP) resolution at up to 120 fps, delivering distortion-free color imaging even in fast-motion environments. Its 22-pin MIPI CSI-2 connector ensures seamless integration with NVIDIA Orin, NXP i.MX 8M Plus, and Raspberry Pi 5 platforms, while 10-bit Bayer (RG) output provides vivid, high-fidelity color reproduction. With a trigger input, M12 lens mount option, and a compact 30×30×6 mm design, the DFM 36SX297-ML offers robust, low-latency imaging ideal for industrial inspection, robotics, and AI edge vision systems.
TECHNICAL INFORMATION:
- Dynamic Range: 10 bit
- Resolution: 720×540 (0.4 MP)
- Frame Rate: 120 fps
- Video Output Format: 10-Bit Bayer (RG)
- Interface: MIPI CSI-2 (22-Pin Connector)
- Compatibility: NVIDIA Orin, NXP i.MX 8M Plus, Raspberry Pi 5
- Sensor Type: CMOS Pregius
- Sensor Model: Sony IMX297
- Shutter Type: Global
- Optical Format: 1/2.9 inch
- Pixel Size: H: 6.9 µm, V: 6.9 µm
- Lens Mount: M12x0.5, optional
- Trigger Input: Supported
- Dimensions: 30×30×6 mm
Quick Info for the The Imaging Source DFM 36SX297-ML
| Camera Category: | Embedded |
|---|---|
| Camera Series: | 36S Series |
| FPS: | 120 |
| Interface: | - |
| Manufacturer: | The Imaging Source |
| Resolutions: | Under 1 MP |
| Scanning Mode: | Global Shutter |
