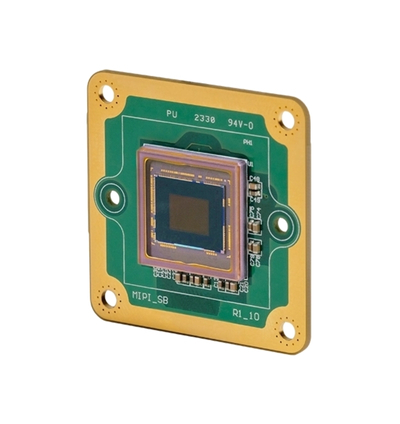

The Imaging Source DFM 36SX462-ML Camera
The DFM 36SX462-ML is a compact, high-sensitivity 36S Series Color MIPI CSI-2 camera engineered for embedded vision and industrial imaging applications. Featuring the 1/2.8-inch Sony CMOS STARVIS IMX462 rolling shutter sensor, it delivers 1920×1080 (2.1 MP) resolution at up to 120 fps, capturing vibrant, low-noise color images even in challenging lighting conditions. Its 22-pin MIPI CSI-2 connector ensures seamless integration with NVIDIA Orin, NXP i.MX 8M Plus, and Raspberry Pi 5 platforms, while 10-bit and 12-bit Bayer (RG) output provides excellent tonal range and color accuracy. With an M12 lens mount option and an ultra-compact 30×30×6 mm form factor, the DFM 36SX462-ML combines high performance, low-light capability, and design flexibility—making it ideal for AI edge, machine vision, and robotics systems.
TECHNICAL INFORMATION:
- Dynamic Range: 12 bit
- Resolution: 1,920×1,080 (2.1 MP)
- Frame Rate: 120 fps
- Video Output Format: 10-Bit Bayer (RG), 12-Bit Bayer (RG)
- Interface: MIPI CSI-2 (22-Pin Connector)
- Compatibility: NVIDIA Orin, NXP i.MX 8M Plus, Raspberry Pi 5
- Sensor Type: CMOS STARVIS
- Sensor Model: Sony IMX462
- Shutter Type: Rolling
- Optical Format: 1/2.8 inch
- Pixel Size: H: 2.9 µm, V: 2.9 µm
- Lens Mount: M12x0.5, optional
- Dimensions: 30×30×6 mm
Quick Info for the The Imaging Source DFM 36SX462-ML
| Camera Category: | Embedded |
|---|---|
| Camera Series: | 36S Series |
| FPS: | 120 |
| Interface: | - |
| Manufacturer: | The Imaging Source |
| Resolutions: | 2.1 MP |
| Scanning Mode: | Rolling Shutter |
