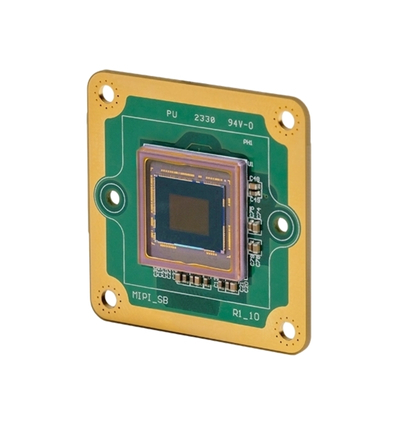

The Imaging Source DFM 36SX568-ML Camera
The DFM 36SX568-ML is a versatile 36S Series Color MIPI CSI-2 camera engineered for high-performance embedded vision and industrial imaging applications. Powered by the 1/1.8-inch Sony CMOS Pregius S IMX568 global shutter sensor, it delivers 2448×2048 (5 MP) resolution at up to 79 fps, ensuring sharp, distortion-free color imaging even in high-speed environments. Its 22-pin MIPI CSI-2 connector provides seamless compatibility with NVIDIA Orin, NXP i.MX 8M Plus, and Raspberry Pi 5 platforms, while 10-bit and 12-bit Bayer (BG) output ensures exceptional color depth and accuracy. With a trigger input, M12 lens mount option, and compact 30×30×6 mm design, the DFM 36SX568-ML combines precision, speed, and flexibility—making it ideal for machine vision, robotics, and embedded AI applications that demand both performance and reliability.
TECHNICAL INFORMATION:
- Dynamic Range: 10 bit
- Resolution: 2,448×2,048 (5 MP)
- Frame Rate: 79 fps
- Video Output Format: 10-Bit Bayer (BG), 12-Bit Bayer (BG)
- Interface: MIPI CSI-2 (22-Pin Connector)
- Compatibility: NVIDIA Orin, NXP i.MX 8M Plus, Raspberry Pi 5
- Sensor Type: CMOS Pregius S
- Sensor Model: Sony IMX568
- Shutter Type: Global
- Optical Format: 1/1.8 inch
- Pixel Size: H: 2.74 µm, V: 2.74 µm
- Lens Mount: M12x0.5, optional
- Trigger Input: Supported
- Dimensions: 30×30×6 mm
Quick Info for the The Imaging Source DFM 36SX568-ML
| Camera Category: | Embedded |
|---|---|
| Camera Series: | 36S Series |
| FPS: | 79 |
| Interface: | - |
| Manufacturer: | The Imaging Source |
| Resolutions: | 5 MP |
| Scanning Mode: | Global Shutter |
