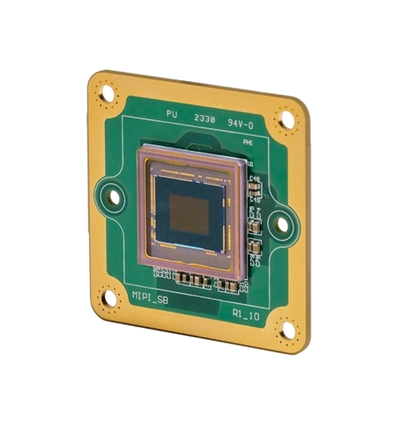

The Imaging Source DFM 36SX900-ML Camera
The DFM 36SX900-ML is a high-performance 36S Series Color MIPI CSI-2 camera engineered for embedded and industrial imaging applications that demand speed, accuracy, and color precision. Featuring the 1/3.1-inch Sony CMOS Pregius S IMX900 global shutter sensor, it captures 2048×1536 (3.1 MP) resolution at up to 117 fps, ensuring crisp, distortion-free color images even in high-motion environments. Its 22-pin MIPI CSI-2 connector supports seamless integration with NVIDIA Orin, NXP i.MX 8M Plus, and Raspberry Pi 5, while 10-bit and 12-bit Bayer (RG) output provides superior tonal depth and image fidelity. With a trigger input, M12 lens mount option, and an ultra-compact 30×30×6 mm design, the DFM 36SX900-ML delivers powerful performance for machine vision, robotics, and embedded AI systems where space and precision matter.
TECHNICAL INFORMATION:
- Dynamic Range: 12 bit
- Resolution: 2,048×1,536 (3.1 MP)
- Frame Rate: 117 fps
- Video Output Format: 10-Bit Bayer (RG), 12-Bit Bayer (RG)
- Interface: MIPI CSI-2 (22-Pin Connector)
- Compatibility: NVIDIA Orin, NXP i.MX 8M Plus, Raspberry Pi 5
- Sensor Type: CMOS Pregius S
- Sensor Model: Sony IMX900
- Shutter Type: Global
- Optical Format: 1/3.1 inch
- Pixel Size: H: 2.25 µm, V: 2.25 µm
- Lens Mount: M12x0.5, optional
- Trigger Input: Supported
- Dimensions: 30×30×6 mm
Quick Info for the The Imaging Source DFM 36SX900-ML
| Camera Category: | Embedded |
|---|---|
| Camera Series: | 36S Series |
| FPS: | 117 |
| Interface: | - |
| Manufacturer: | The Imaging Source |
| Resolutions: | 3.1 MP |
| Scanning Mode: | Global Shutter |
