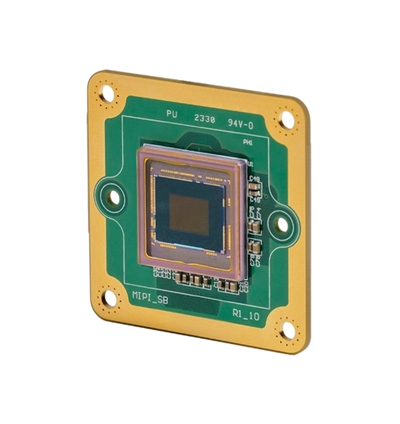

The Imaging Source DMM 36SR0234-ML Camera
The DMM 36SR0234-ML is a compact 36S Series Monochrome MIPI CSI-2 camera engineered for precision imaging in embedded vision and industrial automation. Featuring a 1/2.6-inch onsemi CMOS AR0234CS sensor, it captures 1920×1200 (2.3 MP) resolution at up to 120 fps with exceptional motion clarity thanks to its global shutter. A 22-pin MIPI CSI-2 connector ensures compatibility with NVIDIA Orin, NXP i.MX 8M Plus, and Raspberry Pi 5 platforms, while a trigger input enables synchronized image capture in multi-camera setups. With 10-bit monochrome output, an M12 lens mount option, and a compact 30×30×6 mm form factor, the DMM 36SR0234-ML delivers high-performance imaging in space-constrained embedded and machine vision systems.
TECHNICAL INFORMATION:
- Dynamic Range: 10 bit
- Resolution: 1,920×1,200 (2.3 MP)
- Frame Rate: Up to 120 fps
- Video Output Format: 10-Bit Monochrome
- Interface: MIPI CSI-2 (22-Pin Connector)
- Compatibility: NVIDIA Orin, NXP i.MX 8M Plus, Raspberry Pi 5
- Sensor Type: CMOS
- Sensor Model: onsemi AR0234CS
- Shutter Type: Global
- Optical Format: 1/2.6 inch
- Pixel Size: H: 3 µm, V: 3 µm
- Lens Mount: M12x0.5, optional
- Trigger Input: Supported
- Dimensions: 30×30×6 mm
Quick Info for the The Imaging Source DMM 36SR0234-ML
| Camera Category: | Embedded |
|---|---|
| Camera Series: | 36S Series |
| FPS: | 120 |
| Interface: | - |
| Manufacturer: | The Imaging Source |
| Resolutions: | 2.3 MP |
| Scanning Mode: | Global Shutter |
