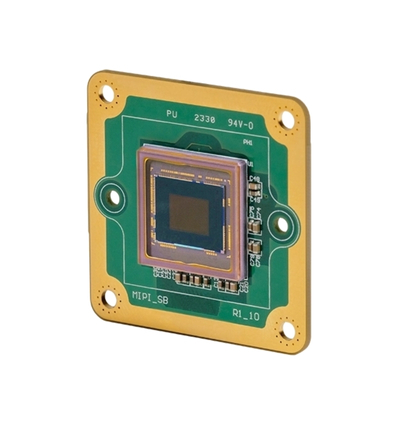

The Imaging Source DMM 36SR0521-ML Camera
The DMM 36SR0521-ML is a compact 36S Series Monochrome MIPI CSI-2 camera designed for embedded vision and industrial imaging applications requiring high performance in a small form factor. Featuring the 1/2.5-inch onsemi CMOS AR0521 rolling shutter sensor, it captures 2592×1944 (5 MP) resolution at up to 60 fps, delivering sharp, detailed images with a 12-bit dynamic range. Its 22-pin MIPI CSI-2 connector ensures seamless compatibility with NVIDIA Orin, NXP i.MX 8M Plus, and Raspberry Pi 5, while 10-bit and 12-bit monochrome output provide superior grayscale precision. With a trigger input, M12 lens mount option, and an ultra-compact 30×30×6 mm design, the DMM 36SR0521-ML offers exceptional flexibility and image quality for AI edge devices, machine vision, and automation systems.
TECHNICAL INFORMATION:
- Dynamic Range: 12 bit
- Resolution: 2,592×1,944 (5 MP)
- Frame Rate: 60 fps
- Video Output Format: 10-Bit Monochrome, 12-Bit Monochrome
- Interface: MIPI CSI-2 (22-Pin Connector)
- Compatibility: NVIDIA Orin, NXP i.MX 8M Plus, Raspberry Pi 5
- Sensor Type: CMOS
- Sensor Model: onsemi AR0521
- Shutter Type: Rolling
- Optical Format: 1/2.5 inch
- Pixel Size: H: 2.2 µm, V: 2.2 µm
- Lens Mount: M12x0.5, optional
- Trigger Input: Supported
- Dimensions: 30×30×6 mm
Quick Info for the The Imaging Source DMM 36SR0521-ML
| Camera Category: | Embedded |
|---|---|
| Camera Series: | 36S Series |
| FPS: | 60 |
| Interface: | - |
| Manufacturer: | The Imaging Source |
| Resolutions: | 5 MP |
| Scanning Mode: | Rolling Shutter |
