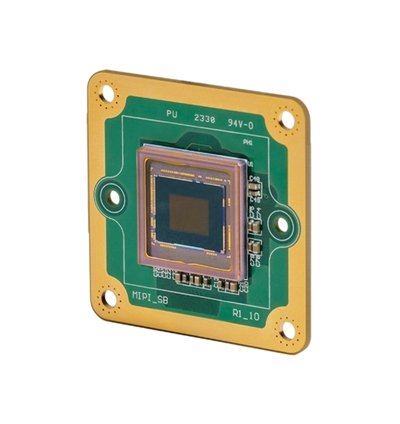

The Imaging Source DMM 36SR2020-ML Camera
The DMM 36SR2020-ML is a high-resolution 36S Series Monochrome MIPI CSI-2 camera built for embedded vision systems that demand exceptional image detail and precision. Equipped with the 1/1.8-inch ON Semiconductor CMOS AR2020 rolling shutter sensor, it captures 5120×3840 (19.7 MP) resolution at up to 30 fps, providing outstanding image clarity and low noise in a compact form factor. Its 22-pin MIPI CSI-2 connector ensures seamless compatibility with NVIDIA Orin, NXP i.MX 8M Plus, and Raspberry Pi 5, while 10-bit monochrome output delivers precise grayscale performance. With a trigger input, M12 lens mount option, and a slim 30×30×6 mm design, the DMM 36SR2020-ML delivers professional-grade imaging for industrial inspection, robotics, and AI edge applications where resolution and integration flexibility are critical.
TECHNICAL INFORMATION:
- Dynamic Range: 10 bit
- Resolution: 5,120×3,840 (19.7 MP)
- Frame Rate: 30 fps
- Video Output Format: 10-Bit Monochrome
- Interface: MIPI CSI-2 (22-Pin Connector)
- Compatibility: NVIDIA Orin, NXP i.MX 8M Plus, Raspberry Pi 5
- Sensor Type: CMOS
- Sensor Model: ON Semiconductor AR2020
- Shutter Type: Rolling
- Optical Format: 1/1.8 inch
- Pixel Size: H: 1.4 µm, V: 1.4 µm
- Lens Mount: M12x0.5, optional
- Trigger Input: Supported
- Dimensions: 30×30×6 mm
Quick Info for the The Imaging Source DMM 36SR2020-ML
| Camera Category: | Embedded |
|---|---|
| Camera Series: | 36S Series |
| FPS: | 30 |
| Interface: | - |
| Manufacturer: | The Imaging Source |
| Resolutions: | 19.7 |
| Scanning Mode: | Rolling Shutter |
