The Imaging Source DMM 36SX290-ML Camera
Need Help Finding the Best Camera for Your Solution? Call (631) 254-2600

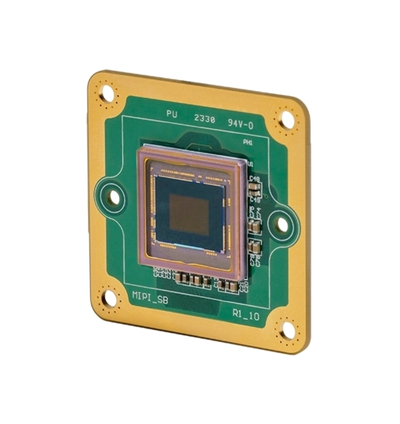

This 36S Series monochrome MIPI CSI-2 camera connects directly to processors via a 22-pin interface compatible with NVIDIA Orin, NXP i.MX 8M Plus, and Raspberry Pi 5. The Sony IMX290 STARVIS rolling-shutter sensor delivers 2.1 MP at up to 120 fps with 2.9 µm pixels for detailed imaging. The 30×30×6 mm design fits tight spaces, and the optional M12 lens mount offers flexible optics selection for embedded applications.
TECHNICAL INFORMATION:
- Dynamic Range: 12 bit
- Resolution: 1,920×1,080 (2.1 MP)
- Frame Rate: 120 fps
- Video Output Format: 10-Bit Monochrome, 12-Bit Monochrome
- Interface (Optical)
- Sensor Type: CMOS STARVIS
- Sensor Specification: Sony IMX290
- Shutter: Rolling
- Format: 1/2.8 inch
- Pixel Size: H: 2.9 µm, V: 2.9 µm
- Lens Mount: M12x0.5, optional
Quick Info for the The Imaging Source DMM 36SX290-ML
| Camera Category: | Embedded |
|---|---|
| Camera Series: | 36S Series |
| FPS: | 120 |
| Manufacturer: | The Imaging Source |
| Resolutions: | 2.1 MP |
| Scanning Mode: | Rolling Shutter |
