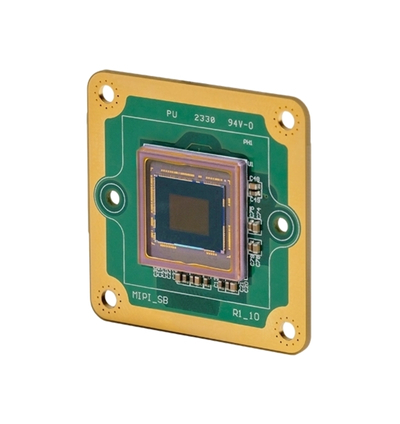

The Imaging Source DMM 36SX296-ML Camera

Designed for embedded vision, this 36S Series monochrome MIPI CSI-2 module uses a 22-pin connector that works with NVIDIA Orin, NXP i.MX 8M Plus, and Raspberry Pi 5. The Sony IMX296 Pregius global-shutter sensor captures 1.6 MP at up to 60 fps with 3.45 µm pixels, delivering sharp images of moving targets. A trigger input enables deterministic capture, and the slim 30×30×6 mm footprint with an optional M12 lens mount eases system design.

TECHNICAL INFORMATION:

• Dynamic Range: 10 bit
• Resolution: 1,440×1,080 (1.6 MP)
• Frame Rate: 60 fps
• Video Output Format: 10-Bit Monochrome
• Interface (Optical)
• Sensor Type: CMOS Pregius
• Sensor Specification: Sony IMX296
• Shutter: Global
• Format: 1/2.9 inch
• Pixel Size: H: 3.45 µm, V: 3.45 µm
• Lens Mount: M12x0.5, optional
