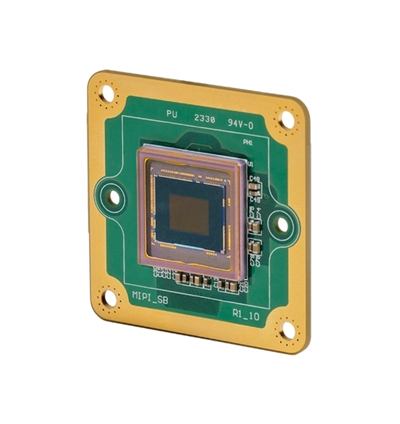

The Imaging Source DMM 36SX297-ML Camera

This 36S Series monochrome MIPI CSI-2 camera integrates a 22-pin connector compatible with NVIDIA Orin, NXP i.MX 8M Plus, and Raspberry Pi 5 for a direct processor link. The Sony IMX297 Pregius global-shutter sensor captures 0.4 MP at up to 120 fps with large 6.9 µm pixels for high sensitivity. A trigger input supports precise timing, while the compact 30×30×6 mm form factor and optional M12 lens mount simplify embedded vision integration.

TECHNICAL INFORMATION:

• Dynamic Range: 10 bit
• Resolution: 720×540 (0.4 MP)
• Frame Rate: 120 fps
• Video Output Format: 10-Bit Monochrome
• Interface (Optical)
• Sensor Type: CMOS Pregius
• Sensor Specification: Sony IMX297
• Shutter: Global
• Format: 1/2.9 inch
• Pixel Size: H: 6.9 µm, V: 6.9 µm
• Lens Mount: M12x0.5, optional
