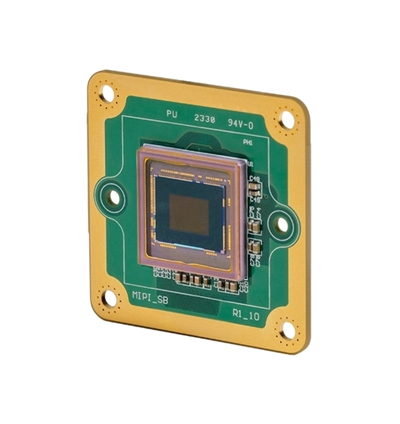

The Imaging Source DMM 36SX415-ML Camera
The DMM 36SX415-ML is a high-resolution 36S Series Monochrome MIPI CSI-2 camera designed for embedded vision and AI applications requiring ultra-detailed imaging in compact systems. Featuring the 1/2.8-inch Sony CMOS STARVIS IMX415 rolling shutter sensor, it captures 3840×2160 (8.3 MP) resolution at up to 50 fps, delivering exceptional image clarity and low-noise performance even in variable lighting conditions. Its 22-pin MIPI CSI-2 connector ensures easy integration with NVIDIA Orin, NXP i.MX 8M Plus, and Raspberry Pi 5, while 10-bit and 12-bit monochrome output provide fine grayscale precision. With a rolling shutter, M12 lens mount option, and an ultra-compact 30×30×6 mm design, the DMM 36SX415-ML offers a balance of high resolution, efficiency, and flexibility ideal for embedded vision, inspection, and smart automation systems.
TECHNICAL INFORMATION:
- Dynamic Range: 12 bit
- Resolution: 3,840×2,160 (8.3 MP)
- Frame Rate: 50 fps
- Video Output Format: 10-Bit Monochrome, 12-Bit Monochrome
- Interface: MIPI CSI-2 (22-Pin Connector)
- Compatibility: NVIDIA Orin, NXP i.MX 8M Plus, Raspberry Pi 5
- Sensor Type: CMOS STARVIS
- Sensor Model: Sony IMX415
- Shutter Type: Rolling
- Optical Format: 1/2.8 inch
- Pixel Size: H: 1.45 µm, V: 1.45 µm
- Lens Mount: M12x0.5, optional
- Dimensions: 30×30×6 mm
Quick Info for the The Imaging Source DMM 36SX415-ML
| Camera Category: | Embedded |
|---|---|
| Camera Series: | 36S Series |
| FPS: | 50 |
| Interface: | - |
| Manufacturer: | The Imaging Source |
| Resolutions: | 8.3 MP |
| Scanning Mode: | Rolling Shutter |
