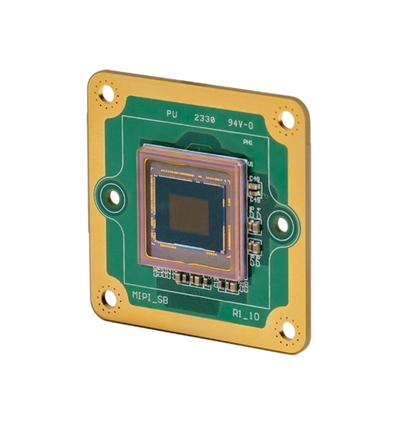

The Imaging Source DMM 36SX462-ML Camera
Need Help Finding the Best Camera for Your Solution? Call (631) 254-2600
The DMM 36SX462-ML is a compact 36S Series Monochrome MIPI CSI-2 camera built for high-speed embedded vision and AI applications. Powered by the 1/2.8-inch Sony CMOS STARVIS IMX462 sensor, it captures 1920×1080 (2.1 MP) at up to 120 fps with excellent low-light performance and dynamic range. Its 22-pin MIPI CSI-2 connector ensures easy integration with NVIDIA Orin, NXP i.MX 8M Plus, and Raspberry Pi 5, while 10- and 12-bit monochrome output delivers precise grayscale imaging. With a rolling shutter, M12 lens mount option, and a 30×30×6 mm form factor, it’s ideal for industrial inspection, robotics, and edge AI systems.
TECHNICAL INFORMATION:
- Dynamic Range: 12 bit
- Resolution: 1,920×1,080 (2.1 MP)
- Frame Rate: Up to 120 fps
- Video Output Format: 10-Bit Monochrome, 12-Bit Monochrome
- Interface: MIPI CSI-2 (22-Pin Connector)
- Compatibility: NVIDIA Orin, NXP i.MX 8M Plus, Raspberry Pi 5
- Sensor Type: CMOS STARVIS
- Sensor Model: Sony IMX462
- Shutter Type: Rolling
- Optical Format: 1/2.8 inch
- Pixel Size: H: 2.9 µm, V: 2.9 µm
- Lens Mount: M12x0.5, optional
- Dimensions: 30×30×6 mm
Quick Info for the The Imaging Source DMM 36SX462-ML
| Camera Category: | Embedded |
|---|---|
| Camera Series: | 36S Series |
| FPS: | 120 |
| Interface: | - |
| Manufacturer: | The Imaging Source |
| Resolutions: | 2.1 MP |
| Scanning Mode: | Rolling Shutter |
