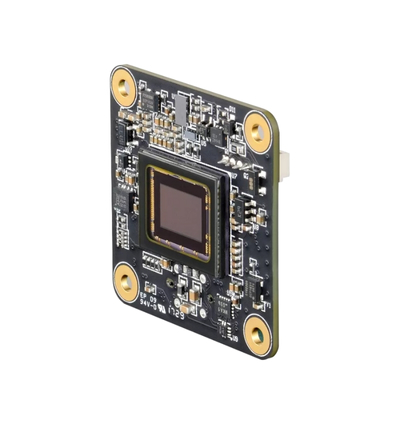

The Imaging Source DFM 37UR0234-ML Camera

Using the onsemi AR0234CS sensor, this USB 3.1 color board camera delivers 2.3 MP up to 100 fps with a global shutter for sharp results on moving targets. It includes trigger and I/O inputs and fits tight spaces with a 30×30×15 mm USB powered form factor.

TECHNICAL INFORMATION:

• Vision Standard: USB3 Vision
• Dynamic Range: 10 bit
• Resolution: 1,920×1,200 (2.3 MP)
• Frame Rate: 100 fps
• Video Output Format: 8-Bit Bayer (GR), 10-Bit Bayer Packed (GR), 16-Bit Bayer (GR)
• Interface (Optical)
• Sensor Type: CMOS
• Sensor Specification: onsemi AR0234CS
• Shutter: Global
• Format: 1/2.6 inch
• Pixel Size: H: 3 µm, V: 3 µm
• Lens Mount: M12x0.5, optional
