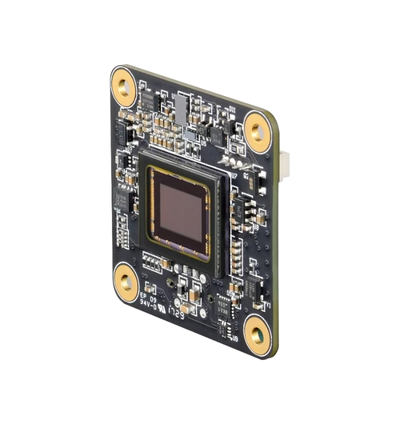

With the onsemi AR0521 sensor, this color board camera outputs 5 MP at up to 60 fps over USB 3.1 using a rolling shutter. It includes trigger and I/O for control and maintains a compact 30×30×15 mm profile for space-limited vision projects.
TECHNICAL INFORMATION:
- Vision Standard: GigE Vision
- Dynamic Range: 12 bit
- Resolution: 2,592×1,944 (5 MP)
- Frame Rate: 60 fps
- Video Output Format: 8-Bit Bayer (GR), 10-Bit Bayer Packed (GR), 16-Bit Bayer (GR)
- Interface (Optical)
- Sensor Type: CMOS
- Sensor Specification: onsemi AR0521
- Shutter: Rolling
- Format: 1/2.5 inch
- Pixel Size: H: 2.2 µm, V: 2.2 µm
- Lens Mount: M12x0.5, optional
Quick Info for the The Imaging Source DFM 37UR0521-ML
| Camera Category: | Board Level |
|---|---|
| Camera Series: | 37U Series |
| FPS: | 60 |
| Interface: | USB3 Vision |
| Manufacturer: | The Imaging Source |
| Resolutions: | 5 MP |
| Scanning Mode: | Rolling Shutter |
