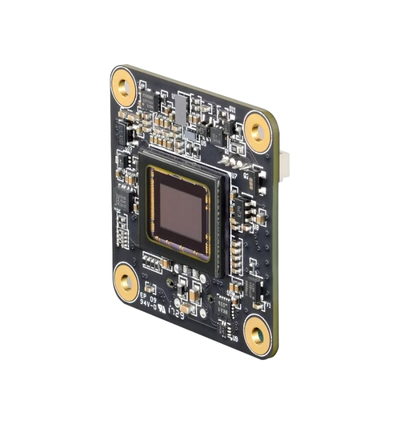

The Imaging Source DFM 37UR2020-ML Camera

This USB 3.1 color board camera leverages the onsemi AR2020 sensor to deliver 19.7 MP at up to 19 fps with a rolling shutter. It integrates trigger and I/O inputs for timing and remains installation friendly with a 30×30×15 mm USB powered design.

TECHNICAL INFORMATION:

• Vision Standard: USB3 Vision
• Dynamic Range: 10 bit
• Resolution: 5,120×3,840 (19.7 MP)
• Frame Rate: 19 fps
• Video Output Format: 8-Bit Bayer (GR), 10-Bit Bayer Packed (GR), 16-Bit Bayer (GR)
• Interface (Optical)
• Sensor Type: CMOS
• Sensor Specification: onsemi AR2020
• Shutter: Rolling
• Format: 1/1.8 inch
• Pixel Size: H: 1.4 µm, V: 1.4 µm
• Lens Mount: M12x0.5, optional
