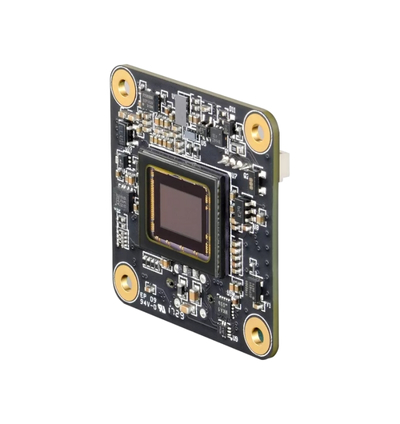

The Imaging Source DFM 37UX178-ML Camera
Need Help Finding the Best Camera for Your Solution? Call (631) 254-2600
This USB 3.1 color board camera employs the Sony IMX178 STARVIS sensor to capture 6.3 MP at up to 60 fps with a rolling shutter. It supports precise timing via trigger and I/O, and its 30×30×15 mm USB powered design streamlines embedded integration.
TECHNICAL INFORMATION:
- Vision Standard: USB3 Vision
- Dynamic Range: 12 bit
- Resolution: 3,072×2,048 (6.3 MP)
- Frame Rate: 60 fps
- Video Output Format: 8-Bit Bayer (RG), 12-Bit Bayer Packed (RG), 16-Bit Bayer (RG)
- Interface (Optical)
- Sensor Type: CMOS STARVIS
- Sensor Specification: Sony IMX178
- Shutter: Rolling
- Format: 1/1.8 inch
- Pixel Size: H: 2.4 µm, V: 2.4 µm
- Lens Mount: M12x0.5, optional
Quick Info for the The Imaging Source DFM 37UX178-ML
| Camera Category: | Board Level |
|---|---|
| Camera Series: | 37U Series |
| FPS: | 60 |
| Interface: | USB3 Vision |
| Manufacturer: | The Imaging Source |
| Resolutions: | 6.3 MP |
| Scanning Mode: | Rolling Shutter |
