The Imaging Source DFM 37UX250-ML Camera
Need Help Finding the Best Camera for Your Solution? Call (631) 254-2600

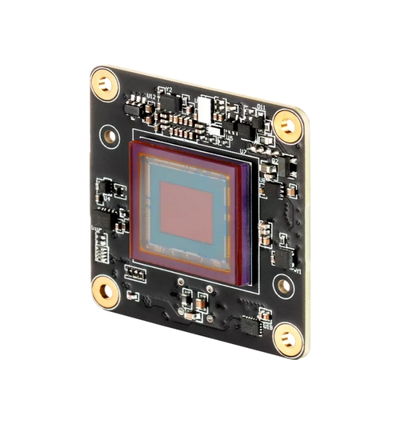

This color board camera uses the Sony IMX250 Pregius sensor to provide 5 MP at up to 75 fps with a global shutter. Designed with trigger and I/O for control and a 36×36×15 mm body powered via USB, it fits seamlessly into demanding machine vision systems.
TECHNICAL INFORMATION:
- Vision Standard: USB3 Vision
- Dynamic Range: 12 bit
- Resolution: 2,448×2,048 (5 MP)
- Frame Rate: 75 fps
- Video Output Format: 8-Bit Bayer (RG), 16-Bit Bayer (RG)
- Interface (Optical)
- Sensor Type: CMOS Pregius
- Sensor Specification: Sony IMX250
- Shutter: Global
- Format: 2/3 inch
- Pixel Size: H: 3.45 µm, V: 3.45 µm
- Lens Mount: M12x0.5, optional
Quick Info for the The Imaging Source DFM 37UX250-ML
| Camera Category: | Board Level |
|---|---|
| Camera Series: | 37U Series |
| FPS: | 75 |
| Interface: | - |
| Manufacturer: | The Imaging Source |
| Resolutions: | 5 MP |
| Scanning Mode: | Global Shutter |
