The Imaging Source DFM 37UX264-ML Camera
Need Help Finding the Best Camera for Your Solution? Call (631) 254-2600

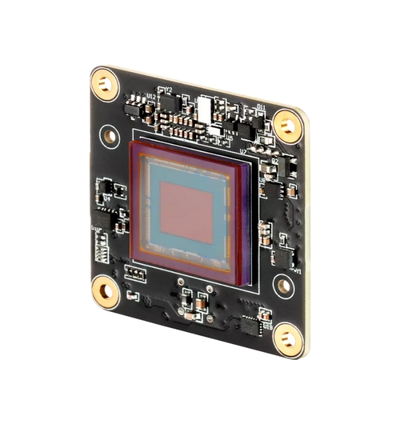

This USB 3.1 color board camera integrates the Sony IMX264 Pregius sensor for 5 MP imaging up to 38 fps with a global shutter. It supports system timing through trigger and I/O and fits standard builds with a 36×36×15 mm USB powered enclosure.
TECHNICAL INFORMATION:
- Vision Standard: USB3 Vision
- Dynamic Range: 12 bit
- Resolution: 2,448×2,048 (5 MP)
- Frame Rate: 38 fps
- Video Output Format: 8-Bit Bayer (RG), 16-Bit Bayer (RG)
- Interface (Optical)
- Sensor Type: CMOS Pregius
- Sensor Specification: Sony IMX264
- Shutter: Global
- Format: 2/3 inch
- Pixel Size: H: 3.45 µm, V: 3.45 µm
- Lens Mount: M12x0.5, optional
Quick Info for the The Imaging Source DFM 37UX264-ML
| Camera Category: | Board Level |
|---|---|
| Camera Series: | 37U Series |
| FPS: | 38 |
| Interface: | USB3 Vision |
| Manufacturer: | The Imaging Source |
| Resolutions: | 5 MP |
| Scanning Mode: | Global Shutter |
