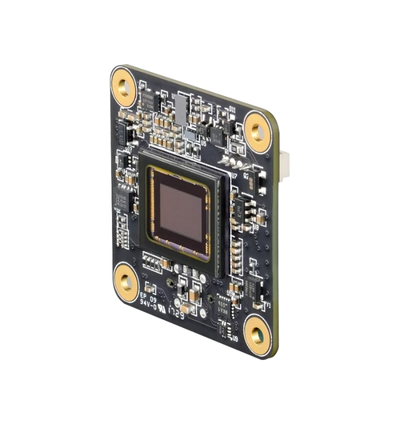

The Imaging Source DFM 37UX287-ML Camera

This 37U Series color board camera combines USB 3.1 connectivity with the Sony IMX287 Pregius sensor to produce 0.4 MP color images at up to 539 fps. A global shutter preserves detail in fast scenes, while trigger and I/O inputs aid timing. The 30×30×15 mm size and USB power make it easy to integrate.

TECHNICAL INFORMATION:

• Vision Standard: USB3 Vision
• Dynamic Range: 10 bit
• Resolution: 720×540 (0.4 MP)
• Frame Rate: 539 fps
• Video Output Format: 8-Bit Bayer (RG), 12-Bit Bayer Packed (RG), 16-Bit Bayer (RG)
• Interface (Optical)
• Sensor Type: CMOS Pregius
• Sensor Specification: Sony IMX287
• Shutter: Global
• Format: 1/2.9 inch
• Pixel Size: H: 6.9 µm, V: 6.9 µm
• Lens Mount: M12x0.5, optional
