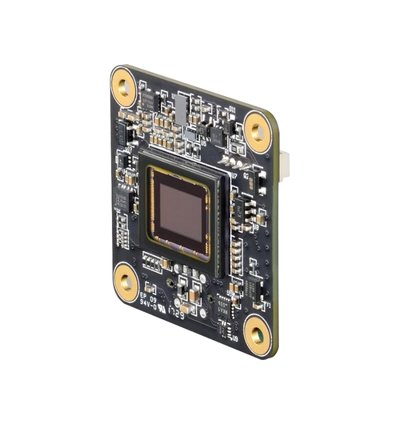

The Imaging Source DFM 37UX290-ML Camera
Need Help Finding the Best Camera for Your Solution? Call (631) 254-2600
Powered by the Sony IMX290 STARVIS sensor, this USB 3.1 color board camera records 2.1 MP at up to 143 fps with a rolling shutter. It supports trigger and I/O for synchronization and integrates cleanly in space-limited systems with a 30×30×15 mm footprint and USB power.
TECHNICAL INFORMATION:
- Vision Standard: USB3 Vision
- Dynamic Range: 10 bit
- Resolution: 1,920×1,080 (2.1 MP)
- Frame Rate: 143 fps
- Video Output Format: 8-Bit Bayer (RG), 16-Bit Bayer (RG)
- Interface (Optical)
- Sensor Type: CMOS STARVIS
- Sensor Specification: Sony IMX290
- Shutter: Rolling
- Format: 1/2.8 inch
- Pixel Size H: 2.9 µm, V: 2.9 µm
- Lens Mount: M12x0.5, optional
Quick Info for the The Imaging Source DFM 37UX290-ML
| Camera Category: | Board Level |
|---|---|
| Camera Series: | 37U Series |
| FPS: | 143 |
| Interface: | USB3 Vision |
| Manufacturer: | The Imaging Source |
| Resolutions: | 2.1 MP |
| Scanning Mode: | Rolling Shutter |
