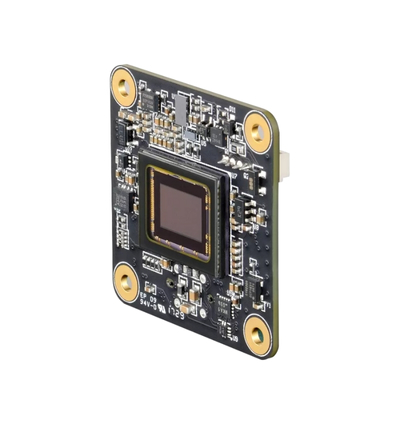

The Imaging Source DFM 37UX568-ML Camera
Need Help Finding the Best Camera for Your Solution? Call (631) 254-2600
Built on the Sony IMX568 Pregius S sensor, this USB 3.1 color board camera delivers 5 MP at up to 74 fps with a global shutter and fine 2.74 µm pixels. It provides trigger and I/O for synchronization and a compact 30×30×15 mm design for easy integration.
TECHNICAL INFORMATION:
- Vision Standard: USB3 Vision
- Dynamic Range: 12 bit
- Resolution: 2,448×2,048 (5 MP)
- Frame Rate: 74 fps
- Video Output Format: 8-Bit Bayer (RG), 12-Bit Bayer Packed (RG), 16-Bit Bayer (RG)
- Interface (Optical)
- Sensor Type: CMOS Pregius S
- Sensor Specification: Sony IMX568
- Shutter: Global
- Format: 1/1.8 inch
- Pixel Size: H: 2.74 µm, V: 2.74 µm
- Lens Mount: M12x0.5, optional
Quick Info for the The Imaging Source DFM 37UX568-ML
| Camera Category: | Board Level |
|---|---|
| Camera Series: | 37U Series |
| FPS: | 74 |
| Interface: | USB3 Vision |
| Manufacturer: | The Imaging Source |
| Resolutions: | 5 MP |
| Scanning Mode: | Global Shutter |
