The Imaging Source DMM 37UR0234-ML Camera
Need Help Finding the Best Camera for Your Solution? Call (631) 254-2600

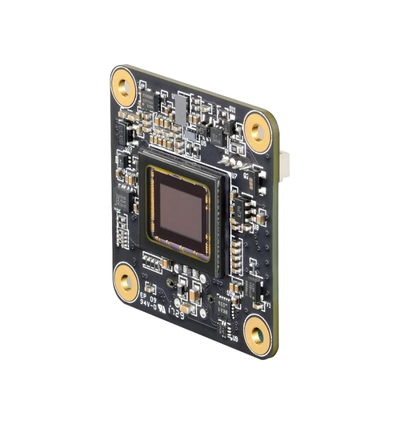

Featuring the onsemi AR0234CS sensor, this USB 3.1 monochrome board camera captures 2.3 MP images up to 100 fps with a global shutter for precise motion capture. It includes trigger and I/O inputs for system control and fits tight spaces with a 30×30×15 mm housing powered via USB.
TECHNICAL INFORMATION:
- Vision Standard: USB3 Vision
- Dynamic Range: 10 bit
- Resolution: 1,920×1,200 (2.3 MP)
- Frame Rate: 100 fps
- Video Output Format: 8-Bit Monochrome, 10-Bit Packed Monochrome, 16-Bit Monochrome
- Interface (Optical)
- Sensor Type: CMOS
- Sensor Specification: onsemi AR0234CS
- Shutter: Global
- Format: 1/2.6 inch
- Pixel Size: H: 3 µm, V: 3 µm
- Lens Mount: M12x0.5, optional
Quick Info for the The Imaging Source DMM 37UR0234-ML
| Camera Category: | Board Level |
|---|---|
| Camera Series: | 37U Series |
| FPS: | 100 |
| Interface: | USB3 Vision |
| Manufacturer: | The Imaging Source |
| Resolutions: | 2.3 MP |
| Scanning Mode: | Global Shutter |
