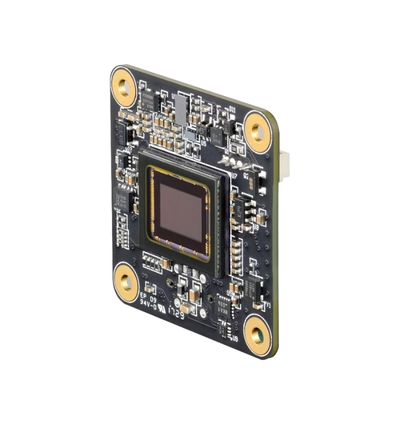

The Imaging Source DMM 37UR0521-ML Camera

With the onsemi AR0521 sensor, this USB 3.1 monochrome board camera provides 5 MP at up to 60 fps using a rolling shutter for efficient capture. It integrates trigger and I/O inputs for control and maintains a compact 30×30×15 mm design powered via USB.

TECHNICAL INFORMATION:

• Vision Standard: USB3 Vision
• Dynamic Range: 12 bit
• Resolution: 2,592×1,944 (5 MP)
• Frame Rate :60 fps
• Video Output Format: 8-Bit Monochrome, 10-Bit Packed Monochrome, 16-Bit Monochrome
• Interface (Optical)
• Sensor Type: CMOS
• Sensor Specification: onsemi AR0521
• Shutter: Rolling
• Format: 1/2.5 inch
• Pixel Size: H: 2.2 µm, V: 2.2 µm
• Lens Mount: M12x0.5, optional
