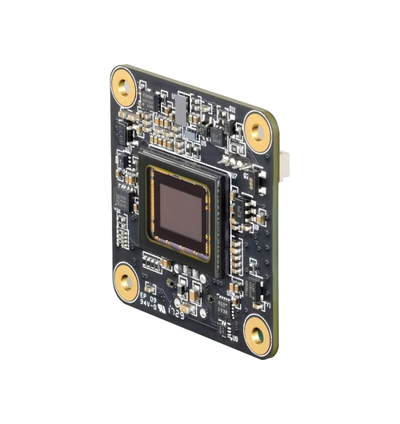

The Imaging Source DMM 37UR2020-ML Camera

This high-resolution USB 3.1 monochrome board camera uses the onsemi AR2020 sensor to deliver 19.7 MP at up to 19 fps with a rolling shutter. Despite its resolution, it remains compact at 30×30×15 mm, includes trigger and I/O for synchronization, and draws power via USB for simplified integration.

TECHNICAL INFORMATION:

• Vision Standard: USB3 Vision
• Dynamic Range: 10 bit
• Resolution: 5,120×3,840 (19.7 MP)
• Frame Rate: 19 fps
• Video Output Format: 8-Bit Monochrome, 10-Bit Packed Monochrome, 16-Bit Monochrome
• Interface (Optical)
• Sensor Type: CMOS
• Sensor Specification: onsemi AR2020
• Shutter: Rolling
• Format: 1/1.8 inch
• Pixel Size: H: 1.4 µm, V: 1.4 µm
• Lens Mount :M12x0.5, optional
