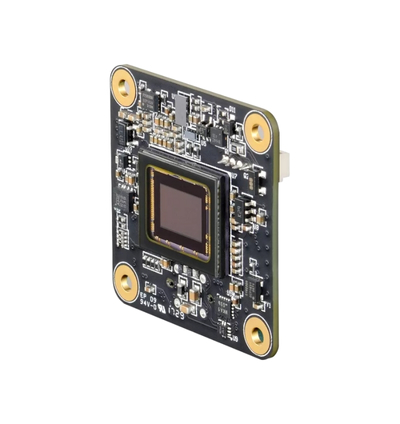

The Imaging Source DMM 37UX226-ML Camera

Designed around the Sony IMX226 STARVIS sensor, this USB 3.1 monochrome board camera captures 12 MP at up to 30 fps using a rolling shutter. It offers trigger and I/O for system timing and integrates easily with a 30×30×15 mm housing powered over USB.

TECHNICAL INFORMATION:

• Vision Standard: USB3 Vision
• Dynamic Range: 12 bit
• Resolution: 4,000×3,000 (12 MP)
• Frame Rate: 30 fps
• Video Output Format: 8-Bit Monochrome, 12-Bit Packed Monochrome, 16-Bit Monochrome
• Interface (Optical)
• Sensor Type: CMOS STARVIS
• Sensor Specification: Sony IMX226
• Shutter: Rolling
• Format: 1/1.7 inch
• Pixel Size: H: 1.85 µm, V: 1.85 µm
• Lens Mount: M12x0.5, optional
