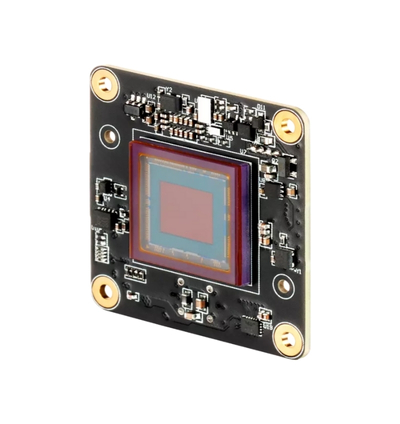

The Imaging Source DMM 37UX252-ML Camera
Need Help Finding the Best Camera for Your Solution? Call (631) 254-2600
This 37U Series monochrome camera leverages the Sony IMX252 Pregius sensor to deliver 3.1 MP at up to 119 fps with a global shutter for blur-free motion capture. With trigger and I/O inputs and a 36×36×15 mm footprint, it balances robust performance and straightforward integration for industrial builds.
TECHNICAL INFORMATION:
- Vision Standard: USB3 Vision
- Dynamic Range: 12 bit
- Resolution: 2,048×1,536 (3.1 MP)
- Frame Rate: 119 fps
- Video Output Format: 8-Bit Monochrome, 16-Bit Monochrome
- Interface (Optical)
- Sensor Type: CMOS Pregius
- Sensor Specification: Sony IMX252
- Shutter: Global
- Format: 1/1.8 inch
- Pixel Size: H: 3.45 µm, V: 3.45 µm
- Lens Mount: M12x0.5, optional
Quick Info for the The Imaging Source DMM 37UX252-ML
| Camera Category: | Board Level |
|---|---|
| Camera Series: | 37U Series |
| FPS: | 119 |
| Interface: | USB3 Vision |
| Manufacturer: | The Imaging Source |
| Resolutions: | 3.1 MP |
| Scanning Mode: | Global Shutter |
