The Imaging Source DMM 37UX273-ML Camera
Need Help Finding the Best Camera for Your Solution? Call (631) 254-2600

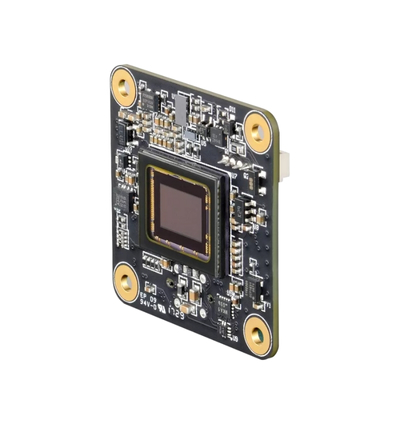

Built on the Sony IMX273 Pregius sensor, this USB 3.1 monochrome board camera delivers 1.6 MP resolution at up to 238 fps with a global shutter for motion fidelity. Developers gain reliable system timing via trigger and I/O inputs, and the 30×30×15 mm design with USB power simplifies embedded integration.
TECHNICAL INFORMATION:
- Vision Standard: USB3 Vision
- Dynamic Range: 10 bit
- Resolution: 1,440×1,080 (1.6 MP)
- Frame Rate: 238 fps
- Video Output Format: 8-Bit Monochrome, 12-Bit Packed Monochrome, 16-Bit Monochrome
- Interface (Optical)
- Sensor Type: CMOS Pregius
- Sensor Specification: Sony IMX273
- Shutter: Global
- Format: 1/2.9 inch
- Pixel Size: H: 3.45 µm, V: 3.45 µm
- Lens Mount: M12x0.5, optional
Quick Info for the The Imaging Source DMM 37UX273-ML
| Camera Category: | Board Level |
|---|---|
| Camera Series: | 37U Series |
| FPS: | 238 |
| Interface: | USB3 Vision |
| Manufacturer: | The Imaging Source |
| Resolutions: | 1.6 MP |
| Scanning Mode: | Global Shutter |
