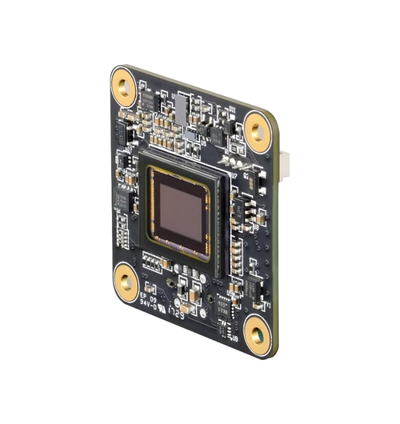

The Imaging Source DMM 37UX287-ML Camera

This 37U Series monochrome board camera pairs a USB 3.1 interface with the Sony IMX287 Pregius sensor to deliver crisp 0.4 MP imaging at up to 539 fps. Its global shutter ensures accurate capture of fast motion, while trigger and I/O inputs streamline system synchronization. The compact 30×30×15 mm footprint and power via USB make integration simple for high-speed machine vision builds.

TECHNICAL INFORMATION:

• Vision Standard: USB3 Vision
• Dynamic Range: 10 bit
• Resolution: 720×540 (0.4 MP)
• Frame Rate: 539 fps
• Video Output Format: 8-Bit Monochrome, 12-Bit Packed Monochrome, 16-Bit Monochrome
• Interface (Optical)
• Sensor Type: CMOS Pregius
• Sensor Specification: Sony IMX287
• Shutter: Global
• Format: 1/2.9 inch
• Pixel Size: H: 6.9 µm, V: 6.9 µm
• Lens Mount: M12x0.5, optional
