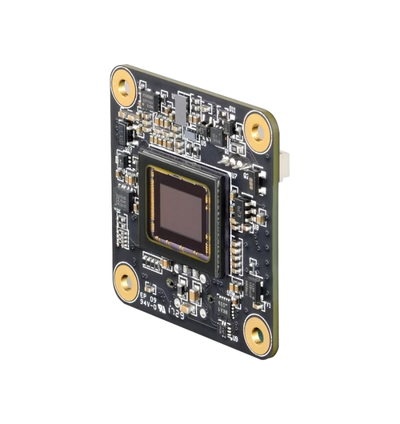

The Imaging Source DMM 37UX290-ML Camera

This USB 3.1 monochrome board camera uses the Sony IMX290 STARVIS sensor to deliver 2.1 MP imaging up to 143 fps. Rolling shutter and sensitive 2.9 µm pixels support low-light scenes, while trigger and I/O inputs aid synchronization. Power via USB and a 30×30×15 mm form factor make it easy to embed.

TECHNICAL INFORMATION:

• Vision Standard: USB3 Vision
• Dynamic Range: 10 bit
• Resolution: 1,920×1,080 (2.1 MP)
• Frame Rate: 143 fps
• Video Output Format: 8-Bit Monochrome, 16-Bit Monochrome
• Interface (Optical)
• Sensor Type: CMOS STARVIS
• Sensor Specification: Sony IMX290
• Shutter: Rolling
• Format: 1/2.8 inch
• Pixel Size: H: 2.9 µm, V: 2.9 µm
• Lens Mount: M12x0.5, optional
