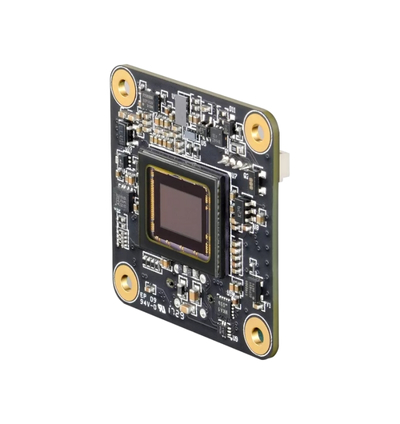

The Imaging Source DMM 37UX568-ML Camera

Using the Sony IMX568 Pregius S sensor, this USB 3.1 monochrome board camera captures 5 MP at up to 74 fps with a global shutter and smaller 2.74 µm pixels for detailed images. It includes trigger and I/O for control and fits compact builds at 30×30×15 mm with USB power.

TECHNICAL INFORMATION:

• Vision Standard: USB3 Vision
• Dynamic Range: 12 bit
• Resolution: 2,448×2,048 (5 MP)
• Frame Rate: 74 fps
• Video Output Format: 8-Bit Monochrome, 12-Bit Packed Monochrome, 16-Bit Monochrome
• Interface (Optical)
• Sensor Type: CMOS Pregius S
• Sensor Specification: Sony IMX568
• Shutter: Global
• Format: 1/1.8 inch
• Pixel Size: H: 2.74 µm, V: 2.74 µm
• Lens Mount: M12x0.5, optional
