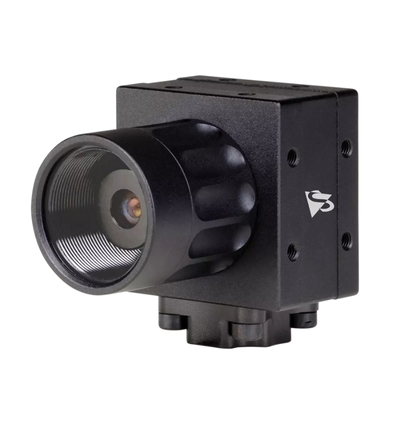

The Imaging Source AcC 36DR0234 Camera
The AcC 36DR0234 is a rugged Acuva Color GSML2 camera designed for high-speed, industrial, and embedded vision applications in harsh environments. Equipped with the 1/2.6-inch onsemi CMOS AR0234CS global shutter sensor, it captures 1920×1200 (2.3 MP) resolution at up to 100 fps, delivering fast, accurate color images with a 10-bit dynamic range. The camera supports GMSL2 data transfer speeds up to 6 Gbps, ensuring reliable, high-speed image transmission. Certified IP6K6 and IP6K7 (ISO 20653), it provides full protection against dust, powerful water jets, and immersion up to 1 meter. With a trigger input and compact 36×36×60.3 mm housing, the AcC 36DR0234 is ideal for automation, machine vision, and embedded AI systems requiring robust, high-performance color imaging.
TECHNICAL INFORMATION:
- Dynamic Range: 10 bit
- Resolution: 1,920×1,200 (2.3 MP)
- Frame Rate: 100 fps
- Video Output Format: 10-Bit Bayer (GR)
- Interface: GMSL2 (up to 6 Gbps)
- Sensor Type: CMOS
- Sensor Model: onsemi AR0234CS
- Shutter Type: Global
- Optical Format: 1/2.6 inch
- Pixel Size: H: 3 µm, V: 3 µm
- Protection Rating: IP6K6 and IP6K7
- ISO Standard: ISO 20653
- Solid Particle Protection: 6K (maximum protection)
- Liquid Ingress Protection: 6 (powerful water jets)
- Additional Liquid Ingress Protection: 7 (immersion up to 1 m)
- Trigger Input: Supported
- Dimensions: 36×36×60.3 mm
Quick Info for the The Imaging Source AcC 36DR0234
| Camera Category: | Embedded |
|---|---|
| Camera Series: | Acuva Series |
| FPS: | 100 |
| Interface: | - |
| Manufacturer: | The Imaging Source |
| Resolutions: | 2.3 MP |
| Scanning Mode: | Global Shutter |
