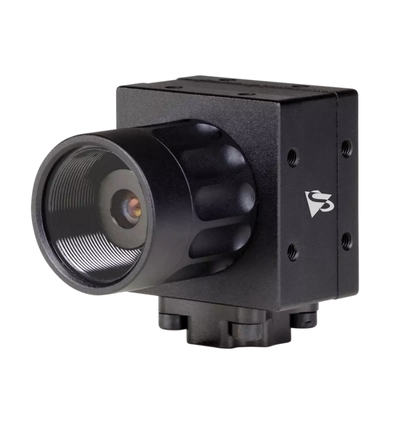

The Imaging Source AcC 36DR2020 Camera
The AcC 36DR2020 is a rugged Acuva Color GSML2 camera built for industrial, embedded vision, and high-resolution imaging applications in harsh environments. Featuring the 1/1.8-inch ON Semiconductor CMOS AR2020 rolling shutter sensor, it captures 5120×3840 (19.7 MP) resolution at up to 15 fps, delivering detailed, low-noise color images with a 10-bit dynamic range. The camera supports GMSL2 data transfer speeds up to 6 Gbps, ensuring fast and reliable image transmission. Certified IP6K6 and IP6K7 (ISO 20653), it offers protection against dust, high-pressure water jets, and immersion up to 1 meter. With a trigger input and compact 36×36×60.3 mm housing, the AcC 36DR2020 provides robust, high-performance imaging for automation, machine vision, and embedded AI systems.
TECHNICAL INFORMATION:
- Dynamic Range: 10 bit
- Resolution: 5,120×3,840 (19.7 MP)
- Frame Rate: 15 fps
- Video Output Format: 10-Bit Bayer (GR)
- Interface: GMSL2 (up to 6 Gbps)
- Sensor Type: CMOS
- Sensor Model: ON Semiconductor AR2020
- Shutter Type: Rolling
- Optical Format: 1/1.8 inch
- Pixel Size: H: 1.4 µm, V: 1.4 µm
- Protection Rating: IP6K6 and IP6K7
- ISO Standard: ISO 20653
- Solid Particle Protection: 6K (maximum protection)
- Liquid Ingress Protection: 6 (powerful water jets)
- Additional Liquid Ingress Protection: 7 (immersion up to 1 m)
- Trigger Input: Supported
- Dimensions: 36×36×60.3 mm
Quick Info for the The Imaging Source AcC 36DR2020
| Camera Category: | Embedded |
|---|---|
| Camera Series: | Acuva Series |
| FPS: | 15 |
| Interface: | - |
| Manufacturer: | The Imaging Source |
| Resolutions: | 19.7 |
| Scanning Mode: | Rolling Shutter |
