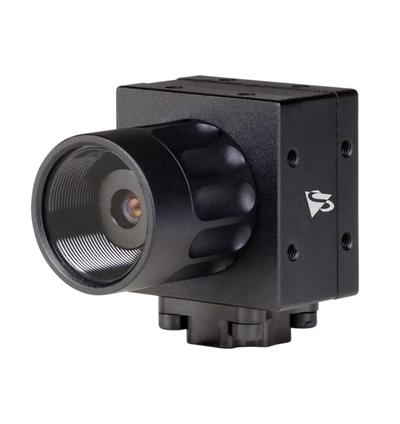

The Imaging Source AcC 36DX568 Camera
The AcC 36DX568 is a rugged Acuva Color GSML2 camera designed for industrial, robotics, and embedded vision applications in challenging environments. Featuring the 1/1.8-inch Sony CMOS Pregius S IMX568 global shutter sensor, it delivers 2448×2048 (5 MP) resolution at up to 48 fps, providing high-precision, low-noise color images with a 10-bit dynamic range. The camera supports GMSL2 data transfer speeds up to 6 Gbps, ensuring reliable, high-speed image transmission. Certified IP6K6 and IP6K7 (ISO 20653), it offers maximum protection against dust, powerful water jets, and immersion up to 1 meter. With a trigger input and durable 36×36×60.3 mm housing, the AcC 36DX568 is ideal for machine vision, automation, and embedded AI systems requiring robust, high-performance imaging.
TECHNICAL INFORMATION:
- Dynamic Range: 10 bit
- Resolution: 2,448×2,048 (5 MP)
- Frame Rate: 48 fps
- Video Output Format: 10-Bit Bayer (BG)
- Interface: GMSL2 (up to 6 Gbps)
- Sensor Type: CMOS Pregius S
- Sensor Model: Sony IMX568
- Shutter Type: Global
- Optical Format: 1/1.8 inch
- Pixel Size: H: 2.74 µm, V: 2.74 µm
- Protection Rating: IP6K6 and IP6K7
- ISO Standard: ISO 20653
- Solid Particle Protection: 6K (maximum protection)
- Liquid Ingress Protection: 6 (powerful water jets)
- Additional Liquid Ingress Protection: 7 (immersion up to 1 m)
- Trigger Input: Supported
- Dimensions: 36×36×60.3 mm
Quick Info for the The Imaging Source AcC 36DX568
| Camera Category: | Embedded |
|---|---|
| Camera Series: | Acuva Series |
| FPS: | 48 |
| Interface: | - |
| Manufacturer: | The Imaging Source |
| Resolutions: | 5 MP |
| Scanning Mode: | Global Shutter |
