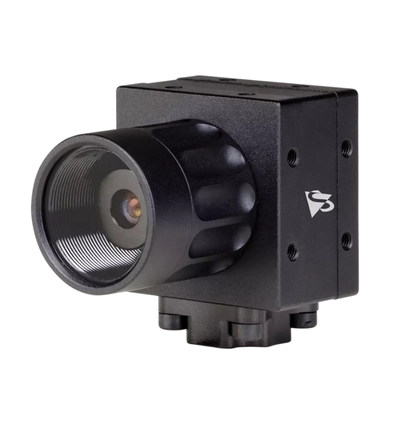

The Imaging Source AcC 36DX900 Camera
The AcC 36DX900 is a rugged Acuva Color GSML2 camera designed for high-speed industrial, robotics, and embedded vision applications in challenging environments. Featuring the 1/3.1-inch Sony CMOS Pregius S IMX900 global shutter sensor, it delivers 2048×1536 (3.1 MP) resolution at up to 117 fps, providing precise, low-noise color images with a 12-bit dynamic range. The camera supports GMSL2 data transfer speeds up to 6 Gbps, ensuring reliable, high-speed image transmission. Certified IP6K6 and IP6K7 (ISO 20653), it offers protection against dust, powerful water jets, and immersion up to 1 meter. With a trigger input and compact 36×36×60.3 mm housing, the AcC 36DX900 provides dependable, high-performance imaging for automation, machine vision, and embedded AI systems.
TECHNICAL INFORMATION:
- Dynamic Range: 12 bit
- Resolution: 2,048×1,536 (3.1 MP)
- Frame Rate: 117 fps
- Video Output Format: 10-Bit Bayer (RG)
- Interface: GMSL2 (up to 6 Gbps)
- Sensor Type: CMOS Pregius S
- Sensor Model: Sony IMX900
- Shutter Type: Global
- Optical Format: 1/3.1 inch
- Pixel Size: H: 2.25 µm, V: 2.25 µm
- Protection Rating: IP6K6 and IP6K7
- ISO Standard: ISO 20653
- Solid Particle Protection: 6K (maximum protection)
- Liquid Ingress Protection: 6 (powerful water jets)
- Additional Liquid Ingress Protection: 7 (immersion up to 1 m)
- Trigger Input: Supported
- Dimensions: 36×36×60.3 mm
Quick Info for the The Imaging Source AcC 36DX900
| Camera Category: | Embedded |
|---|---|
| Camera Series: | Acuva Series |
| FPS: | 117 |
| Interface: | - |
| Manufacturer: | The Imaging Source |
| Resolutions: | 3.1 MP |
| Scanning Mode: | Global Shutter |
