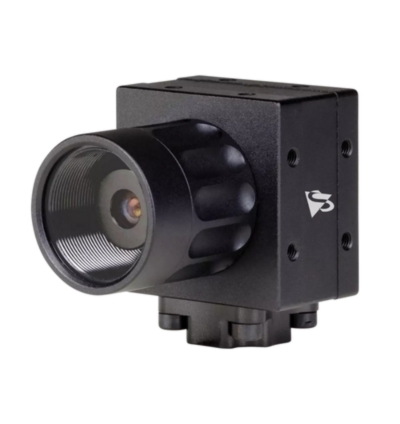

The Imaging Source AcC 36DX900-I67 Camera

The AcC 36DX900-I67 is a compact, high-performance color camera engineered for machine vision applications that require fast, accurate imaging in space-constrained environments. Featuring Sony’s 3.1 MP Pregius S IMX900 global shutter sensor, it delivers sharp, distortion-free color imaging at up to 80 frames per second. GMSL2 connectivity provides reliable, low-latency data transfer at speeds up to 6 Gbps, while the rugged IP6K6/IP6K7-rated housing ensures dependable operation in challenging industrial conditions. With trigger input support and an ultra-compact 36 × 36 × 60.3 mm footprint, the AcC 36DX900-I67 is ideal for high-speed, synchronized imaging in automated inspection, robotics, and embedded vision systems.

TECHNICAL INFORMATION:

• Imaging Type: Color
• Resolution: 2,048 × 1,536 (3.1 MP)
• Frame Rate: Up to 80 fps
• Video Output Format: Color
• Interface: GMSL2 (up to 6 Gbps)
• Sensor Type: CMOS
• Sensor Model: Sony Pregius S IMX900
• Shutter Type: Global
• Optical Format: 1/3.1 inch
• Pixel Size: H: 2.25 µm, V: 2.25 µm
• Sensor Size: 4.6 mm × 3.5 mm
• Sensor Diagonal: 5.8 mm
• Protection Rating: IP6K6 and IP6K7
• ISO Standard: ISO 20653
• Solid Particle Protection: 6K (dust-tight)
• Liquid Ingress Protection: 6 (high-pressure water jets)
• Additional Liquid Ingress Protection: 7 (temporary immersion)
• Trigger Input: Supported
• Dimensions: 36 × 36 × 60.3 mm
