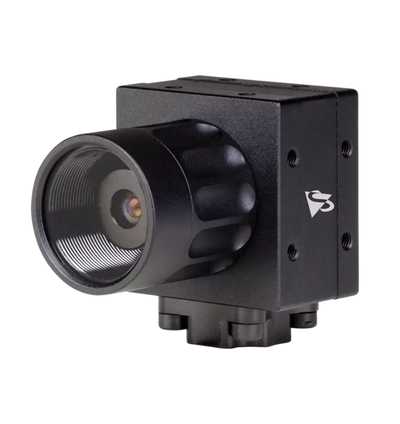

The Imaging Source AcM 36DR0234 Camera

This Acuva monochrome GMSL2 camera uses high-speed GMSL2 transmission up to 6 Gbps and the onsemi AR0234CS global-shutter sensor to deliver 2.3 MP capture at up to 100 fps. Efficient 3 µm pixels support crisp, low-noise imaging, while the IP6K6 and IP6K7 compliance to ISO 20653 ensures dependable operation against dust, powerful water jets, and immersion. A compact 36×36×60.3 mm design and trigger input make integration straightforward in rugged embedded and industrial systems.

TECHNICAL INFORMATION:

• Dynamic Range: 10 bit
• Resolution: 1,920×1,200 (2.3 MP)
• Frame Rate: 100 fps
• Video Output Format: 10-Bit Monochrome
• Protection Rating: IP6K6 and IP6K7
• ISO Standard ISO 20653
• Solid Particle Protection: 6K (maximum protection)
• Liquid Ingress Protection: 6 (powerful water jets)
• Additional Liquid Ingress Protection: 7 (immersion up to 1 m)
