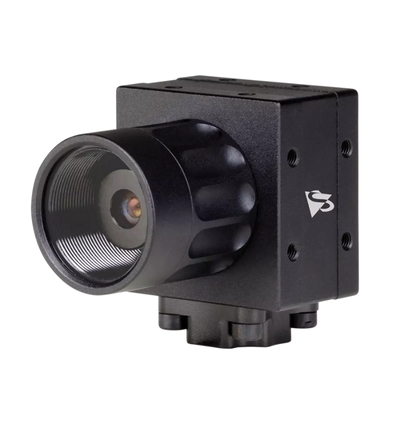

The Imaging Source AcM 36DR2020 Camera

The AcM 36DR2020 is a rugged Acuva Monochrome GSML2 camera designed for industrial, embedded vision, and high-resolution imaging in harsh environments. Featuring the 1/1.8-inch ON Semiconductor CMOS AR2020 rolling shutter sensor, it captures 5120×3840 (19.7 MP) resolution at up to 15 fps, delivering highly detailed monochrome images with a 10-bit dynamic range. The camera supports GMSL2 data transfer speeds up to 6 Gbps, ensuring fast, reliable image transmission. Certified IP6K6 and IP6K7 (ISO 20653), it provides maximum protection against dust, high-pressure water jets, and immersion up to 1 meter. Equipped with a trigger input and compact 36×36×60.3 mm housing, the AcM 36DR2020 is ideal for machine vision, robotics, and embedded AI systems requiring ultra-high-resolution imaging in demanding conditions.

TECHNICAL INFORMATION:

• Dynamic Range: 10 bit
• Resolution: 5,120×3,840 (19.7 MP)
• Frame Rate: 15 fps
• Video Output Format: 10-Bit Monochrome
• Interface: GMSL2 (up to 6 Gbps)
• Sensor Type: CMOS
• Sensor Model: ON Semiconductor AR2020
• Shutter Type: Rolling
• Optical Format: 1/1.8 inch
• Pixel Size: H: 1.4 µm, V: 1.4 µm
• Protection Rating: IP6K6 and IP6K7
• ISO Standard: ISO 20653
• Solid Particle Protection: 6K (maximum protection)
• Liquid Ingress Protection: 6 (powerful water jets)
• Additional Liquid Ingress Protection: 7 (immersion up to 1 m)
• Trigger Input: Supported
• Dimensions: 36×36×60.3 mm
