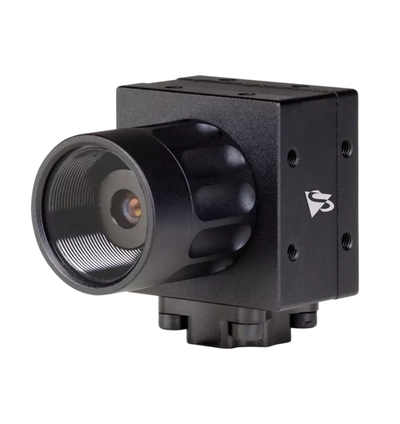

The Imaging Source AcM 36DX568 Camera
Need Help Finding the Best Camera for Your Solution? Call (631) 254-2600
This Acuva monochrome GMSL2 camera features high-speed 6 Gbps transmission and the Sony IMX568 Pregius S global-shutter sensor to provide 5 MP imaging at up to 48 fps. The 2.74 µm pixels deliver sharp detail, while IP6K6 and IP6K7 compliance to ISO 20653 ensures resilience to dust, water jets, and immersion. With a 36×36×60.3 mm footprint and trigger input, it integrates cleanly into rugged embedded and industrial applications.
TECHNICAL INFORMATION:
- Dynamic Range: 10 bit
- Resolution: 2,448×2,048 (5 MP)
- Frame Rate: 48 fps
- Video Output Format: 10-Bit Monochrome
- Protection Rating: IP6K6 and IP6K7
- ISO Standard: ISO 20653
- Solid Particle Protection: 6K (maximum protection)
- Liquid Ingress Protection: 6 (powerful water jets)
- Additional Liquid Ingress Protection: 7 (immersion up to 1 m)
Quick Info for the The Imaging Source AcM 36DX568
| Camera Category: | Embedded |
|---|---|
| FPS: | 48 |
| Manufacturer: | The Imaging Source |
| Resolutions: | 5 MP |
