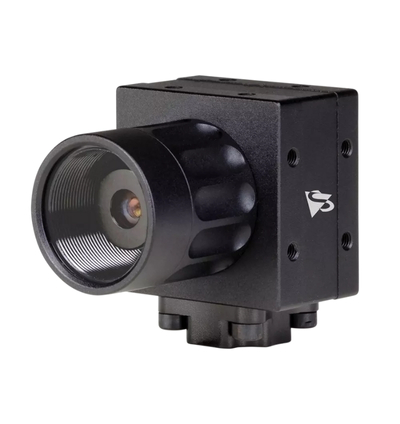

The Imaging Source AcM 36DX900 Camera
Need Help Finding the Best Camera for Your Solution? Call (631) 254-2600
Built for harsh environments, this Acuva monochrome GMSL2 camera combines up to 6 Gbps data transfer with the Sony IMX900 Pregius S global-shutter sensor for 3.1 MP capture at up to 117 fps. Fine 2.25 µm pixels enable detailed imaging, and IP6K6/IP6K7 compliance to ISO 20653 protects against dust, high-pressure water, and immersion. The 36×36×60.3 mm housing and trigger input simplify integration into automotive, robotics, and industrial embedded vision.
TECHNICAL INFORMATION:
- Dynamic Range: 12 bit
- Resolution: 2,048×1,536 (3.1 MP)
- Frame Rate: 117 fps
- Video Output Format: 10-Bit Monochrome
- Protection Rating: IP6K6 and IP6K7
- ISO Standard: ISO 20653
- Solid Particle Protection: 6K (maximum protection)
- Liquid Ingress Protection: 6 (powerful water jets)
- Additional Liquid Ingress Protection: 7 (immersion up to 1 m)
Quick Info for the The Imaging Source AcM 36DX900
| Camera Category: | Embedded |
|---|---|
| FPS: | 117 |
| Manufacturer: | The Imaging Source |
| Resolutions: | 3.1 MP |
