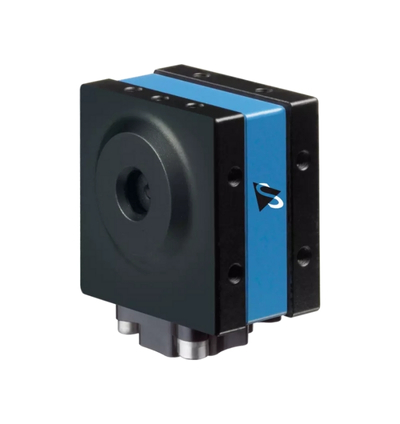

The Imaging Source DFK AFU420-L62 Camera

Built for flexible imaging, this AFU Series color autofocus camera delivers resolutions up to 7,716×5,360 (41.4 MP) and supports frame rates up to 110 fps depending on the mode. Its rolling shutter uses 1.12 µm pixels for high-density capture, while one-touch autofocus speeds setup and adapts to changing working distances. With USB 3.0 connectivity, USB power, and a compact 36×36×26 mm housing, it integrates cleanly into space-constrained vision systems.

TECHNICAL INFORMATION:

• Dynamic Range: 8/12 bit
• Video Formats @ Frame Rate (maximum): 7,716×5,360 (41.4 MP) RGB32 @ 7 fps; 5,424×5,360 (29.1 MP) RGB32 @ 10 fps; 1,920×1,080 (2.1 MP) RGB32 @ 110 fps; 5,424×5,360 (29.1 MP) RGB64 @ 6.7 fps; 1,920×1,080 (2.1 MP) RGB64 @ 74 fps
• Interface (Optical)
• IR-Cut Filter
• Shutter: Rolling
• Format: 2/3 inch
• Pixel Size: H: 1.12 µm, V: 1.12 µm
• Focus: One Touch
