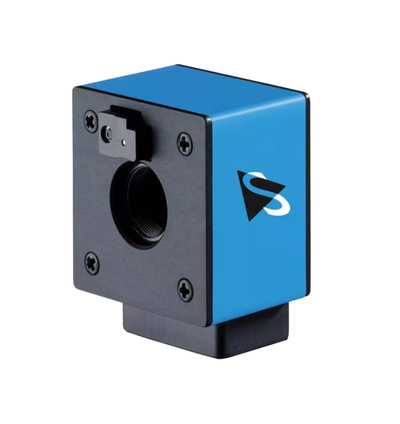

The Imaging Source DFK AFUX178-M12 Camera

This AFU Series color autofocus camera integrates the Sony IMX178 CMOS sensor to deliver 6.3 MP color imaging at up to 22 fps. A rolling shutter with 2.4 µm pixels captures fine detail, and the motorized M12 mount provides rapid autofocus for scenes with changing distances. USB 3.0 connectivity, USB power, and a compact 36×36×30 mm body make it easy to deploy in embedded and machine vision designs.

TECHNICAL INFORMATION:

• Dynamic Range: 8/12 bit
• Resolution: 3,072×2,048 (6.3 MP)
• Frame Rate: 22 fps
• Video Formats @ Frame Rate (maximum): 3,072×2,048 (6.3 MP) Y800 @ 22 fps; 3,072×2,048 (6.3 MP) Y16 @ 22 fps; 3,072×2,048 (6.3 MP) RGB32 @ 11 fps
• Interface (Optical)
• Sensor Type: CMOS
• Sensor Specification: Sony IMX178LQJ
• Shutter: Rolling
• Format: 1/1.8 inch
• Pixel Size: H: 2.4 µm, V: 2.4 µm
• Lens Mount: M12x0.5 (motorized mount)
