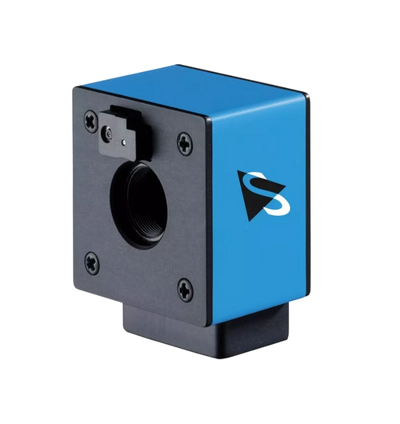

The Imaging Source DMK AFUX178-M12 Camera
Need Help Finding the Best Camera for Your Solution? Call (631) 254-2600
Designed for embedded vision, this AFU Series monochrome autofocus camera uses the Sony IMX178 CMOS sensor to capture 6.3 MP at up to 22 fps. The rolling shutter and 2.4 µm pixels support high-resolution detail, while the motorized M12 mount delivers quick autofocus for variable working distances. With USB 3.0 connectivity, USB power, and a 36×36×30 mm form factor, integration is straightforward.
TECHNICAL INFORMATION:
- Dynamic Range: 8/12 bit
- Resolution: 3,072×2,048 (6.3 MP)
- Frame Rate: 22 fps
- Video Formats @ Frame Rate (maximum): 3,072×2,048 (6.3 MP) Y800 @ 22 fps; 3,072×2,048 (6.3 MP) Y16 @ 11 fps
- Interface (Optical)
- Sensor Type: CMOS
- Sensor Specification: Sony IMX178LLJ
- Shutter: Rolling
- Format: 1/1.8 inch
- Pixel Size: H: 2.4 µm, V: 2.4 µm
- Lens Mount: M12x0.5 (motorized mount)
Quick Info for the The Imaging Source DMK AFUX178-M12
| Camera Category: | Autofocus |
|---|---|
| Camera Series: | AFU Series |
| FPS: | 22 |
| Manufacturer: | The Imaging Source |
| Resolutions: | 6.3 MP |
| Scanning Mode: | Rolling Shutter |
