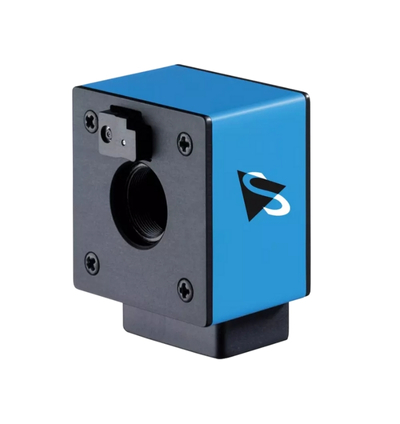

The Imaging Source DMK AFUX236-M12 Camera

This AFU Series monochrome autofocus camera pairs a USB 3.0 interface with the Sony IMX236 CMOS sensor to deliver 2.3 MP capture at up to 54 fps. The rolling shutter and 2.8 µm pixels provide detail-rich imaging, while the motorized M12 mount enables fast, precise autofocus for changing working distances. A compact 36×36×30 mm design and USB power simplify integration in embedded and machine vision systems.

TECHNICAL INFORMATION:

• Dynamic Range: 8/12 bit
• Resolution: 1,920×1,200 (2.3 MP)
• Frame Rate: 54 fps
• Video Formats @ Frame Rate (maximum): 1,920×1,200 (2.3 MP) Y800 @ 54 fps; 1,920×1,200 (2.3 MP) Y16 @ 27 fps
• Interface (Optical)
• Sensor Type: CMOS
• Sensor Specification: Sony IMX236LLJ
• Shutter: Rolling
• Format: 1/2.8 inch
• Pixel Size: H: 2.8 µm, V: 2.8 µm
• Lens Mount: M12x0.5 (motorized mount)
