The Imaging Source ApM 39UR0521-F Camera

Request a Quote

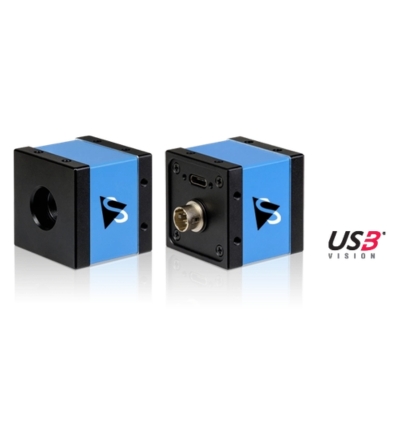

Product image of The Imaging Source ApM 39UR0521-F
Product Photos
Need Help Finding the Best Camera for Your Solution? Call (631) 254-2600
Product image of The Imaging Source ApM 39UR0521-F
The ApM 39UR0521-F Aptiris monochrome autofocus camera is designed for compact machine vision systems that need consistent focus and simple integration, featuring a USB 3.1 interface with power over USB to minimize cabling. It uses a 1/2.5" onsemi AR0521 CMOS sensor to deliver 5 MP resolution (2,592 × 1,944) at up to 60 fps with 2.2 µm pixels for detailed inspection and measurement, while a rolling shutter supports controlled-motion or stable capture environments. Trigger and I/O inputs enable synchronized acquisition with strobes, encoders, and PLCs, and the compact 36 × 36 × 33.8 mm housing makes it easy to deploy in tight enclosures or multi-camera layouts.

TECHNICAL INFORMATION:

  • Aptiris Monochrome Autofocus Camera
  • USB 3.1 Interface, Power via USB
  • 1/2.5 inch onsemi CMOS AR0521 Sensor
  • 2,592×1,944 (5 MP), up to 60 fps
  • Pixel Size: H: 2.2 µm, V: 2.2 µm
  • Sensor Size: 5,7 mm x 4,3 mm
  • Sensor Diagonal: 7,1 mm
  • Rolling Shutter
  • Trigger and I/O Inputs
  • Only 36×36×33.8 mm

Request a Quote

Quick Info for the The Imaging Source ApM 39UR0521-F

Camera Category: Autofocus
Camera Series: Aptiris
FPS: 60
Interface: USB 3.1
Manufacturer: The Imaging Source
Resolutions: 5 MP
Scanning Mode: Rolling Shutter
Signal System: Monochrome
