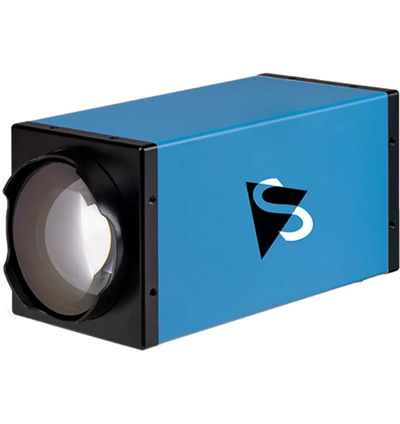

The Imaging Source DFK 39GR0522-Z12 Camera

The DFK 39GR0522-Z12 is a versatile Z Series Color Zoom Camera designed for industrial, machine vision, and automated imaging applications. Featuring the 1/2.5-inch onsemi CMOS AR0522 rolling shutter sensor, it captures 2592×1944 (5 MP) resolution at up to 22 fps, delivering detailed, low-noise color images with a 12-bit dynamic range. The camera includes a motorized zoom lens ranging from 5.1 mm to 57.3 mm, with automatic and manual focus and iris control, enabling flexible imaging from close-up to telephoto. It supports a wide variety of output formats, including Bayer, monochrome, RGB24, and YUV, and is equipped with a GigE interface with PoE, IR-cut filter, and trigger/I/O inputs. Its 50×50×105 mm form factor provides a compact yet robust solution for demanding industrial and automated vision systems.

TECHNICAL INFORMATION:

• Vision Standard: GigE Vision
• Dynamic Range: 12 bit
• Resolution: 2,592×1,944 (5 MP)
• Frame Rate: 22 fps
• Video Output Format: 8-Bit Monochrome, 8-Bit Bayer (GR), 12-Bit Bayer Packed (GR), 16-Bit Bayer (GR), RGB24, YUV 4:2:2, YUV 4:1:1
• Interface: GigE (RJ45), PoE
• Sensor Type: CMOS
• Sensor Model: onsemi AR0522
• Shutter Type: Rolling
• Optical Format: 1/2.5 inch
• Pixel Size: H: 2.2 µm, V: 2.2 µm
• Focal Length: 5.1 mm (wide) to 57.3 mm (tele)
• F-Stop: 1.6 (wide) to 2.8 (tele)
• MOD: 1 cm (wide) to 50 cm (tele)
• Focus: Automatic and Manual
• Iris: Automatic and Manual
• Lens: Integrated
• IR-Cut Filter: Removable
• Trigger and I/O Inputs: Supported
• Dimensions: 50×50×105 mm
