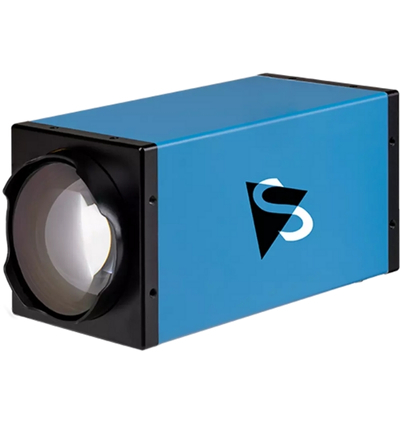

The Imaging Source DFK 39GX548-Z20 Camera

The DFK 39GX548-Z20 is a high-performance Z Series Color Zoom Camera built for industrial, machine vision, and automated imaging applications. Featuring the 1/1.8-inch Sony CMOS Pregius S IMX548 global shutter sensor, it captures 2448×2048 (5 MP) resolution at up to 24 fps, delivering sharp, low-noise color images with a 12-bit dynamic range. The camera includes a motorized zoom lens ranging from 6.8 mm to 136 mm, with automatic and manual focus and iris control, providing flexible imaging from close-up to telephoto. Supporting a wide range of output formats, including Bayer, YUV, and RGB24, and equipped with a GigE interface with PoE, IR-cut filter, and trigger/I/O inputs, the DFK 39GX548-Z20 ensures reliable, high-quality imaging for demanding industrial and automated vision systems. Its 71×71×147 mm form factor is compact yet robust.

TECHNICAL INFORMATION:

• Vision Standard: GigE Vision
• Dynamic Range: 12 bit
• Resolution: 2,448×2,048 (5 MP)
• Frame Rate: 24 fps
• Video Output Format: 8-Bit Bayer (RG), 12-Bit Bayer Packed (RG), 16-Bit Bayer (RG), YUV 4:2:2, YUV 4:1:1, RGB24
• Interface: GigE (RJ45), PoE
• Sensor Type: CMOS Pregius S
• Sensor Model: Sony IMX548
• Shutter Type: Global
• Optical Format: 1/1.8 inch
• Pixel Size: H: 2.74 µm, V: 2.74 µm
• Focal Length: 6.8 mm (wide) to 136 mm (tele)
• F-Stop: 1.5 (wide) to 3.4 (tele)
• MOD: 1 cm (wide) to 90 cm (tele)
• Focus: Automatic and Manual
• Iris: Automatic and Manual
• Lens: Integrated
• IR-Cut Filter: Removable
• Trigger and I/O Inputs: Supported
• Dimensions: 71×71×147 mm
